Wholesale MID Battery For Consumer Electronics Products BZ 60105150 12000mAh 3.7V Lipo Battery

Be the first to review this product

$13.80

In stock

SKU

BZ 60105150 12000mAh 3.7V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 60105150
    Type: Li-polymer
    Nominal Voltage: 3.7V
    Size: 6*105*152mm
    Nominal Capacity: 12000mAh
    Capacity: 12000mAh
    Voltage: 3.7V
    Cycle life: 500times
    Application: MID battery
    Weight: 320g
    Warranty: 1 Year
    Battery type: li-polymer
    Standard charge: 0.2C/ 0.5C/1C
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union

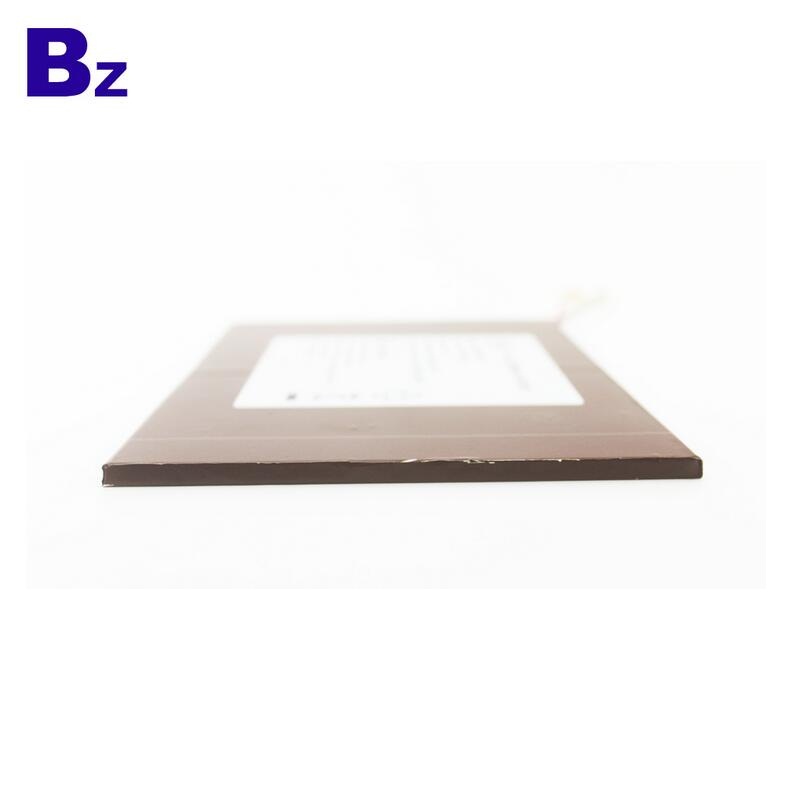

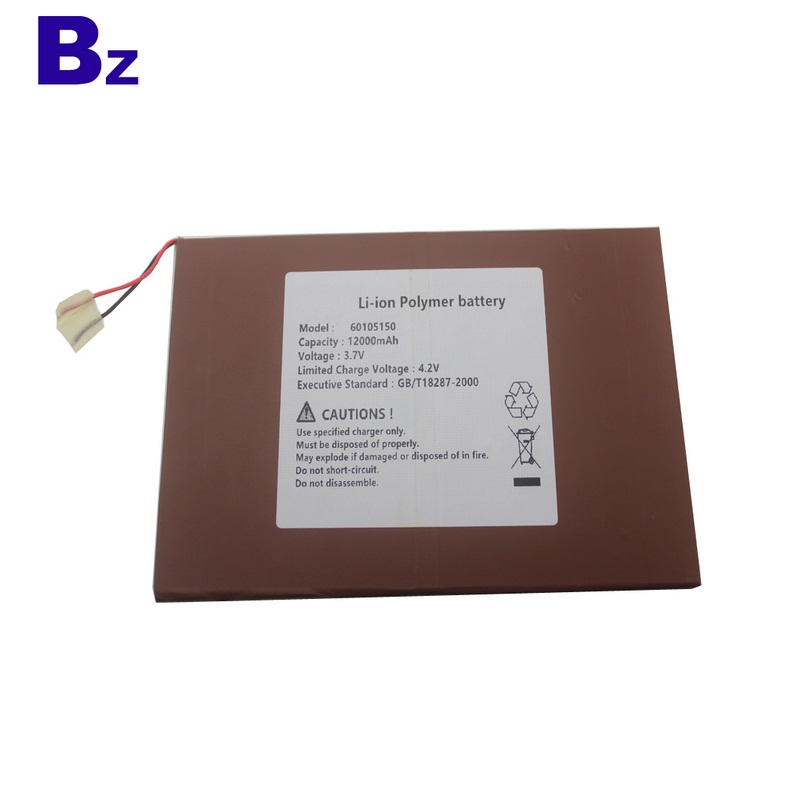

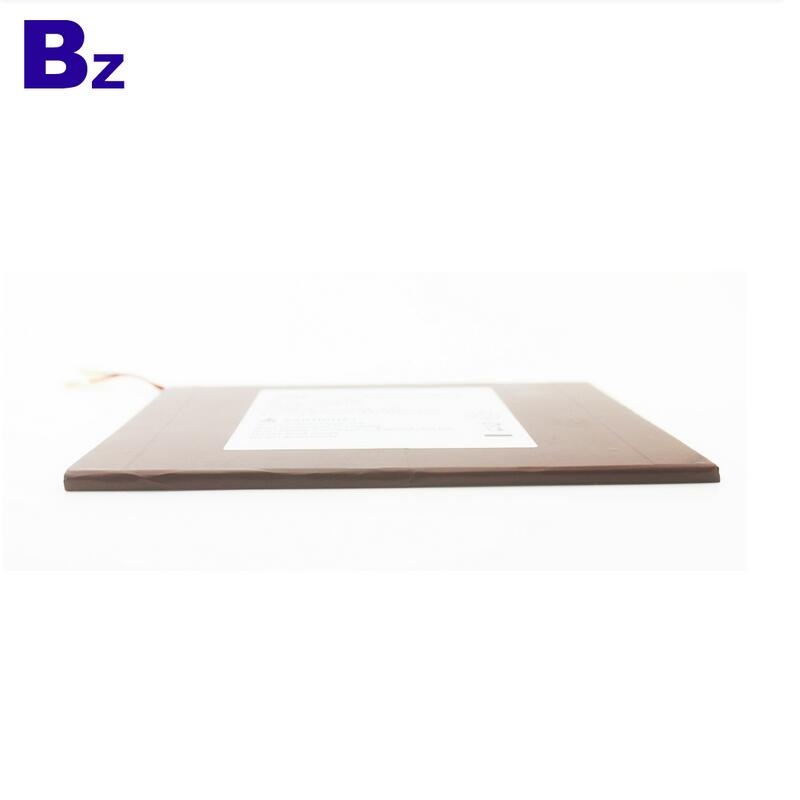

BZ 60105150 12000mAh 3.7V Lipo Battery

12000mAh Battery For Consumer Electronics Products

Wholesale MID Battery 12000mAh 3.7V

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	12100mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	12000mAh
2	Nominal Voltage	3.7V		Mean Operation Voltage
3	Voltage at end of	3.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	4.2±0.03V
5	Internal Impedance	≤30mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 3.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 3.0V
10	Maximum Continuous Charge Current	1 C₅A
11	Maximum Continuous Discharge Current	1C₅A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High:.max6.1mm Width: max105mm Thickness: max152mm		Initial Dimension

Discharge Rate Characteristics li-ion battery
