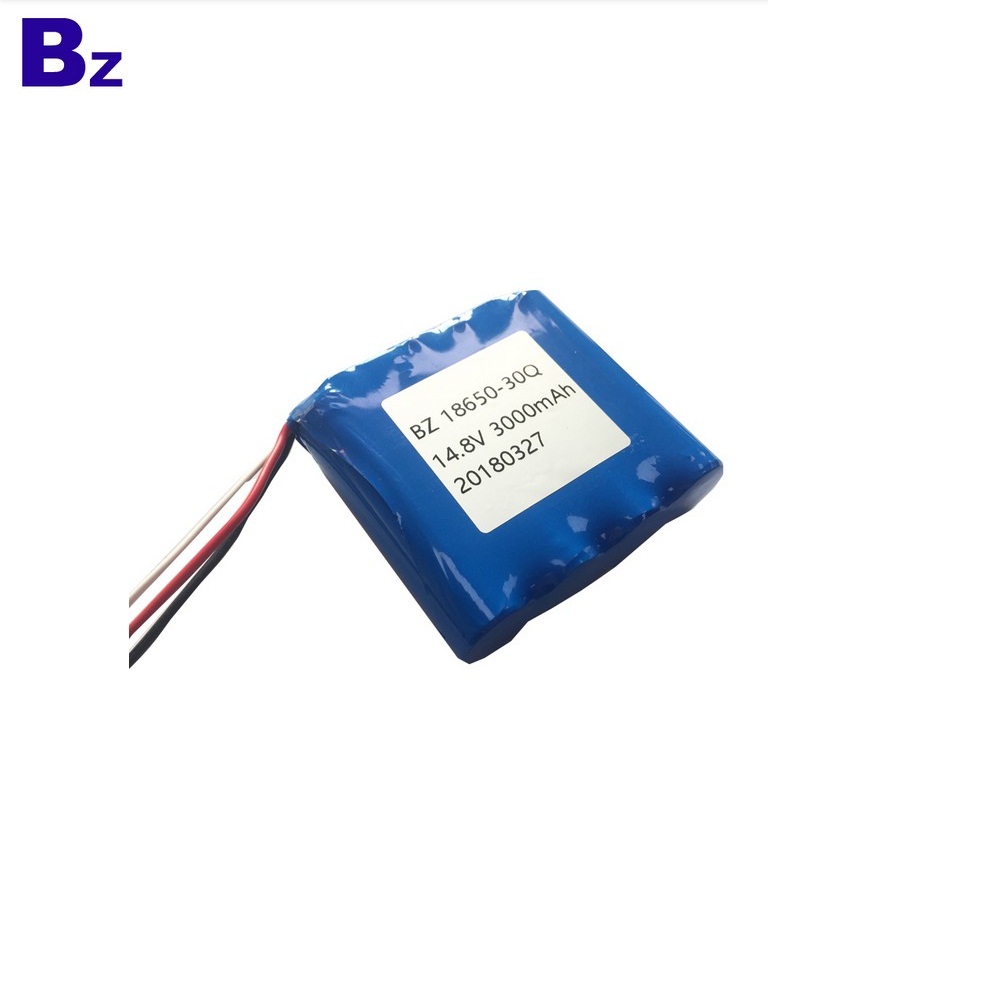

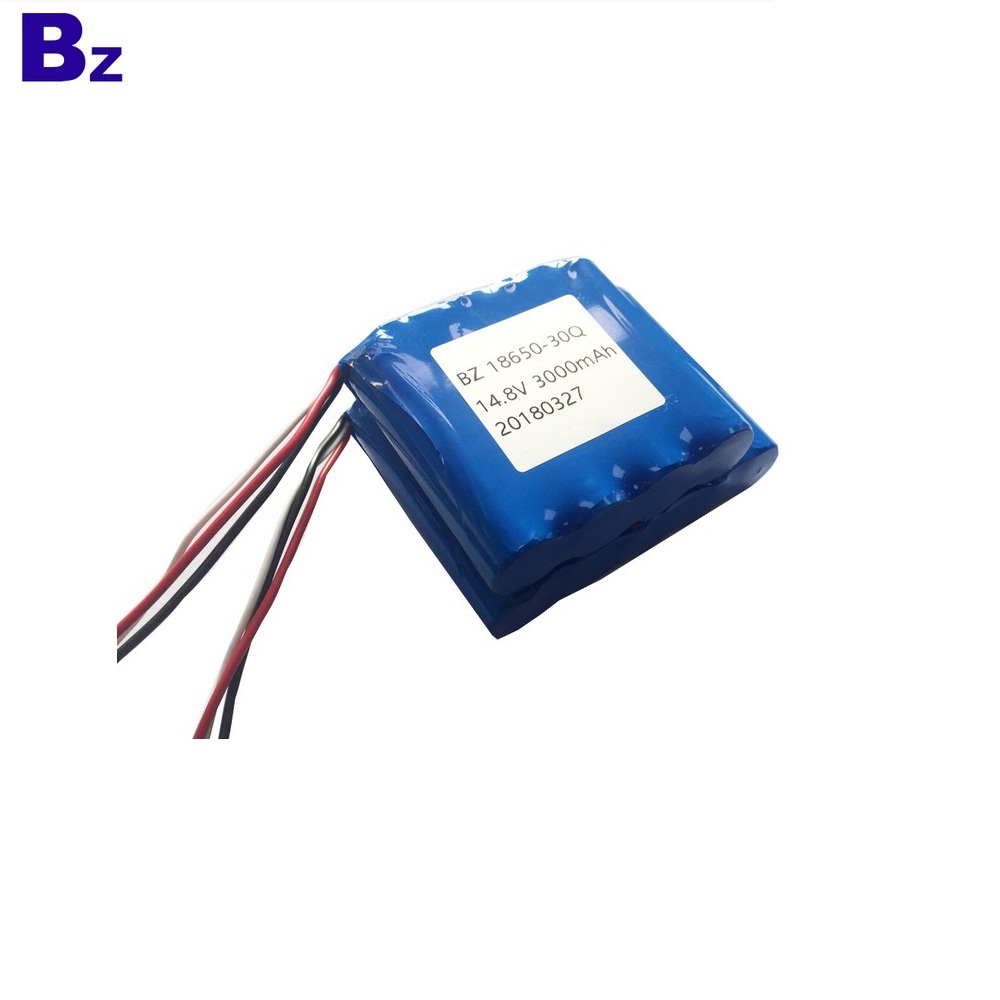

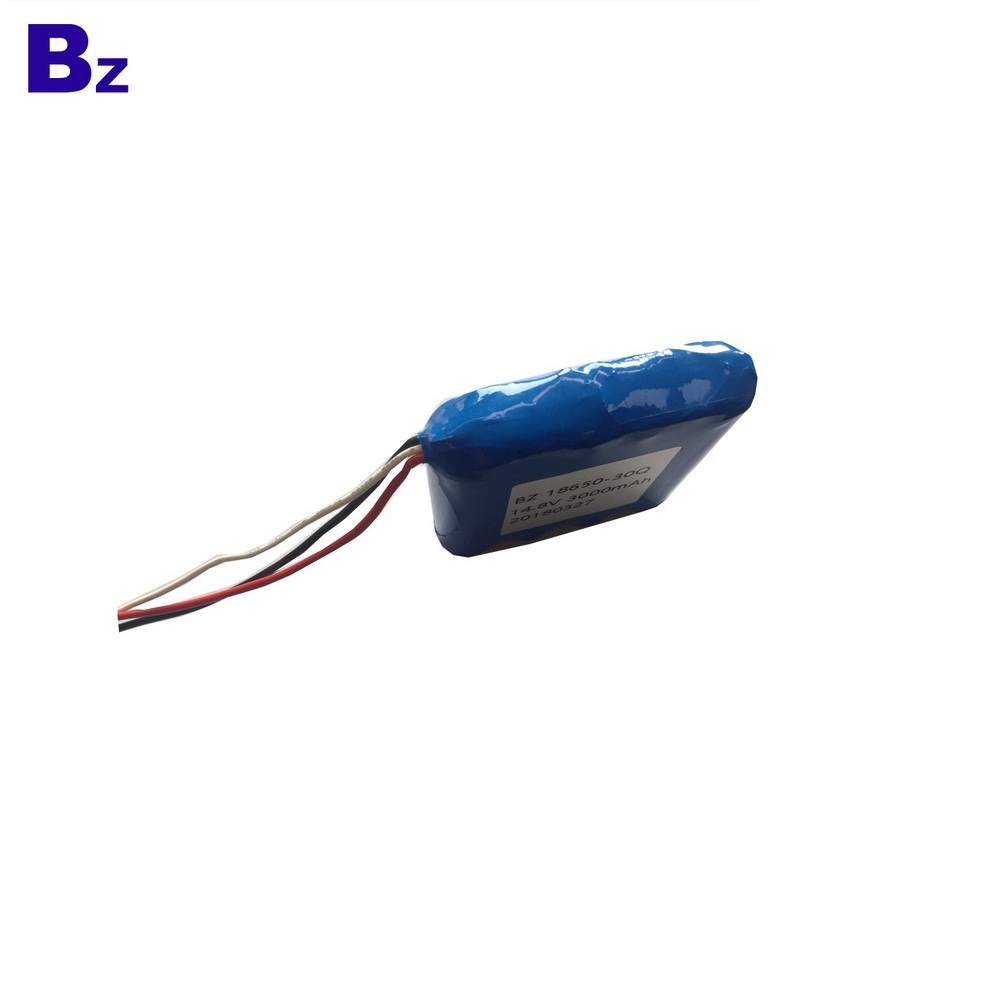

Hand-held Electric Tool Battery BZ 18650-30Q-4S 3000mAh 15A Discharge 14.8V Li-ion Battery

Be the first to review this product

$19.00

In stock

SKU

18650-30Q-4S 3000mAh

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

    Place of Origin: Guangdong, China
    Brand Name: BZ
    Model Number: 18650-4S
    Type: Li-ion
    Nominal Voltage: 14.8V
    Size: 19*69*73mm
    Nominal Capacity: 3000mAh
    Capacity: 3000mAh
    Voltage: 14.8V
    Cycle life: 500times
    Application: Hand-held electric tool battery
    Weight: 250g
    Warranty: 1 Year
    Battery type: Li-ion battery
    Standard charge: 1C
    Certificate: CE/RoHS/UN38.3/MSDS
    Payment: Paypal.TT.Escrow.Western Union

18650-30Q-4S 3000mAh 14.8V Li-ion Battery

Hand-held Electric Tool Battery 3000mAh 15A Discharge

18650-30Q-4S Battery 3000mAh 15A Discharge 14.8V

18650 Battery 3000mAh 15A Discharge 14.8V

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	3100mAh	Standard discharge(5C C₅A) after Standard charge
		Minimum	3000mAh
2	Nominal Voltage	14.8V		Mean Operation Voltage
3	Voltage at end of	12V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	16.8±0.03V
5	Internal Impedance	≤160mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 5 C₅A
		end voltage 12V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 4.2V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 5C₅A
		end voltage 12V
10	Maximum Continuous Charge Current	1 C₅A		3A
11	Maximum Continuous Discharge Current	5C₅A		15A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
		less than 3 months: -20~40℃		at the shipment state
14	Pack Dimension	High:.max73mm Width: max69mm Thickness: max19mm		Initial Dimension

Discharge Rate Characteristics li-ion battery
