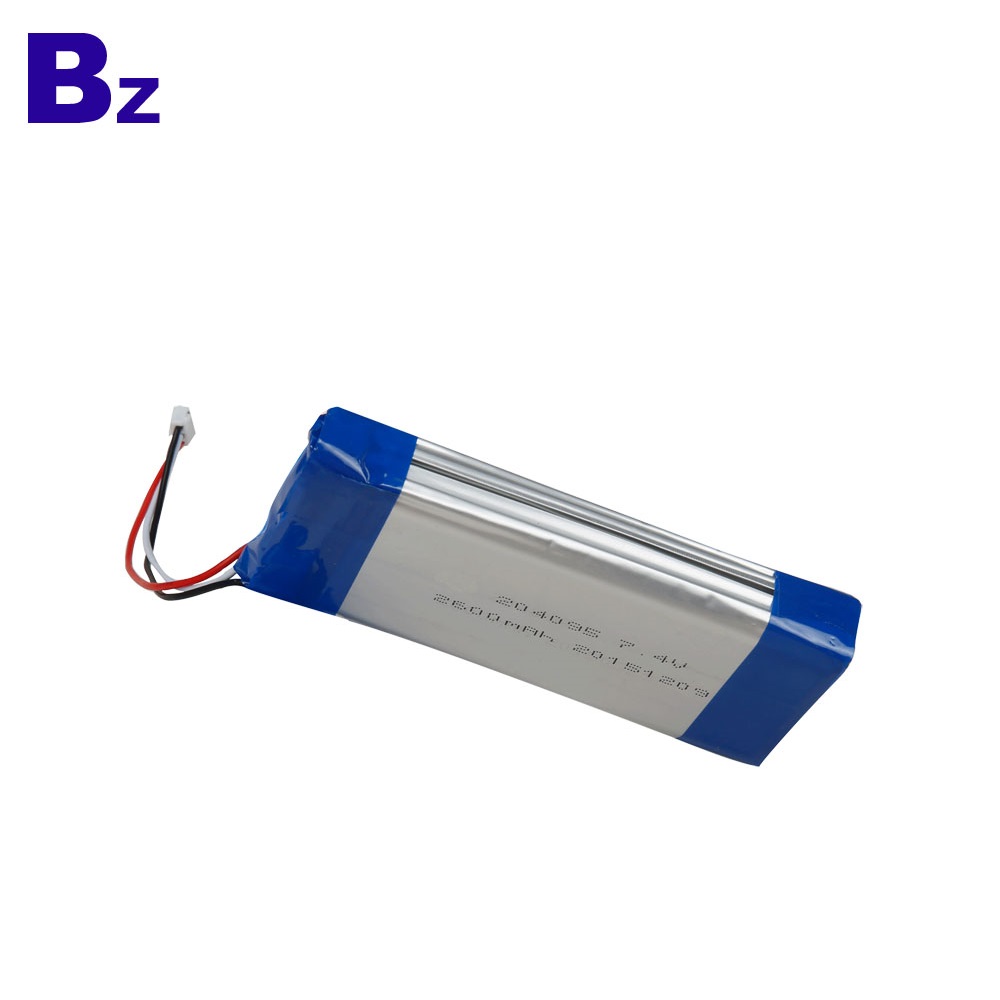

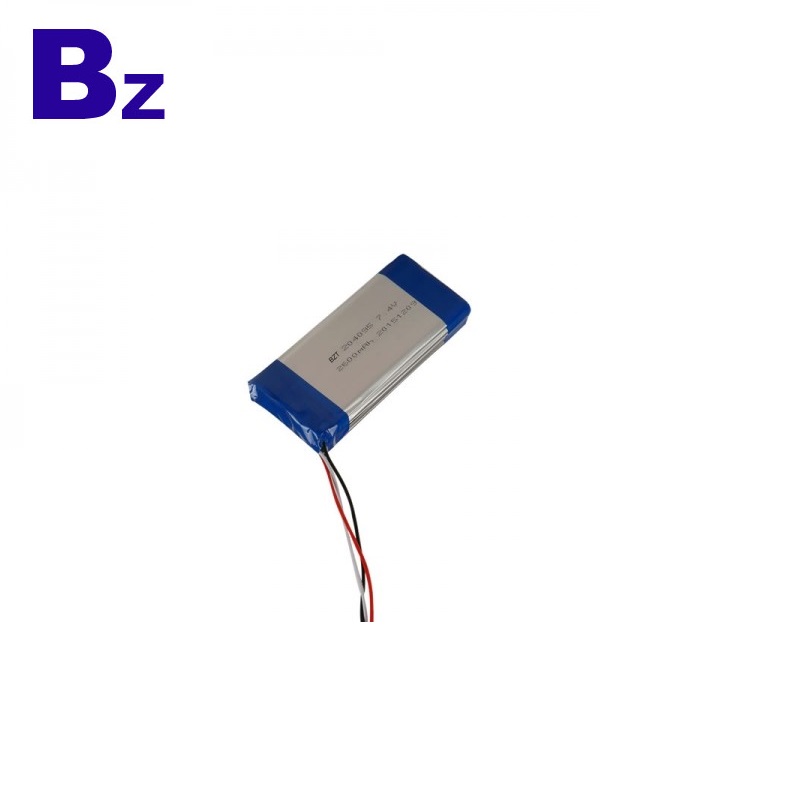

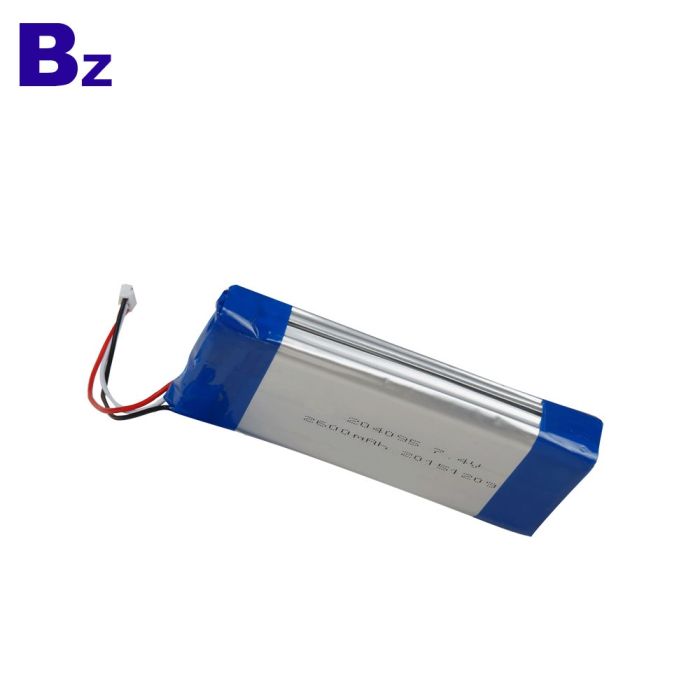

China Lithium Cells Manufacturer Custom-made Battery for Medical Equipment BZ 204095 7.4V 2600mAh Li-polymer Battery
Price: US $6.1-6.6 / Piece
Min. Order: 1,000 Pieces
Please contact us for the order !
Brand Name: BZ
Model Number: 204095
Type: Li-polymer
Nominal Voltage: 7.4V
Size: 20*40*98mm
Nominal Capacity: 2600mAh
Product name: 104095-2S Li-ion battery
Warranty: 1 Year
Weight: 98g
Cycle life: 500 Times
Capacity: 2600mAh
Voltage: 7.4V
Application: Medical Equipment
Certificate: CE/RoHS/UN38.3/MSDS/KC/UL/CB/IEC62133
Payment: Paypal.TT.Escrow.Western Union
Max charge current: 1C
Medical Battery - BZ 204095 - 7.4V - 2600mAh - Lithium Ion Battery - Rechargeable
|
No. |
Item |
General Parameter |
Remark |
|
|
1 |
Rated Capacity |
Typical |
2600mAh |
Standard discharge（0.2C C5A) after Standard charge |
|
Minimum |
2550mAh |
|||
|
2 |
Nominal Voltage |
7.4V |
Mean Operation Voltage |
|
|
3 |
Voltage at end ofDischarge |
5.8V |
Discharge Cut-off Voltage |
|
|
4 |
Charging Voltage |
8.4±0.03V |
|
|
|
5 |
Internal Impedance |
≤180mΩ |
Internal resistance measured at AC 1KHZ after 50% charge The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times |
|
|
6 |
Standard charge |
Constant Current 0.2C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 6h |
|
|
7 |
Standard discharge |
Constant current 0.2 C5Aend voltage5.8V |
|
|
|
8 |
Fast charge |
Constant Current 1.0C5AConstant Voltage 8.4V0.01 C5A cut-off |
Charge time : Approx 2.5h |
|
