China Lithium Battery Manufacturer ODM Battery for Air Cleaner BZ 705295 1100mah 7.4V Rechargeable Li-ion Polymer Battery

$3.00

In stock

SKU

BZ 705295 1100mah 7.4V

FOB Price: US $1.2 - 1.5 / Ampere
Min.Order Quantity: 1000 Ampere/
Please contact us for the order !

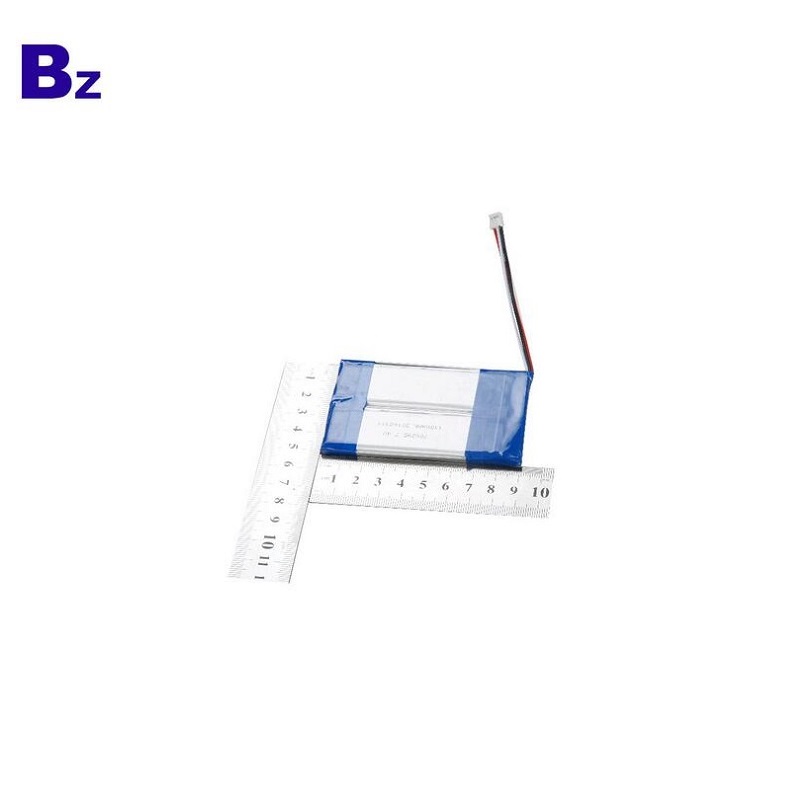

705295 1100mah 7.4V Li-ion Polymer Battery

Battery for Air Cleaner 1100mah 7.4V

Product Parameters

No.	Item	General Parameter		Remark
1	Rated Capacity	Typical	1110mAh	Standard discharge(0.2C C₅A) after Standard charge
		Minimum	1100mAh
2	Nominal Voltage	7.4V		Mean Operation Voltage
3	Voltage at end of	6.0V		Discharge Cut-off Voltage
	Discharge
4	Charging Voltage	8.4±0.03V
5	Internal Impedance	≤100mΩ		Internal resistance measured at AC 1KH_Zafter 50% charge
				The measure must uses the new batteries that within one week after shipment and cycles no more than 5 times
6	Standard charge	Constant Current 0.2C₅A		Charge time : Approx 6h
		Constant Voltage 8.4V
		0.01 C₅A cut-off
7	Standard discharge	Constant current 0.2 C₅A
		end voltage 6.0V
8	Fast charge	Constant Current 0.5C₅A		Charge time : Approx 2.5h
		Constant Voltage 8.4V
		0.01 C₅A cut-off
9	Fast discharge	Constant current 0.5C₅A
		end voltage 6.0V
10	Maximum Continuous Charge Current	1 C₅A
11	Maximum Continuous Discharge Current	1 C₅A
12	Operation Temperature Range	Charge: 0~45℃		60±25%R.H.
				Bare Cell
		Discharge: -20~60℃
13	Storage Temperature Range	Less than 1 year: -20~25℃		60±25%R.H.
				at the shipment state
		less than 3 months: -20~40℃

14	Pack Dimension	High:max95mm Width: max 52.5mm Thickness: max73mm		Initial Dimension

Discharge Rate Characteristics li-ion battery
