China Lithium Battery Manufacturer Customize Lipo Battery For RC Models BZ 502880 1100mAh 15C 11.1V High Rate Battery
$5.20
In stock
SKU
BZ 502880 1100mAh 15C
Price: US $4.9-5.2 / Piece
Min. Order: 2,000 Pieces
Please contact us for the order !
Typical Capacity 1100mAh
Minimum Capacity 1050mAh
Energy 12.21Wh
Nominal Voltage 11.1V
Open Circuit Voltage 11.1~11.8V
Internal Impedance ≤30mΩ
Charge voltage 12.6V

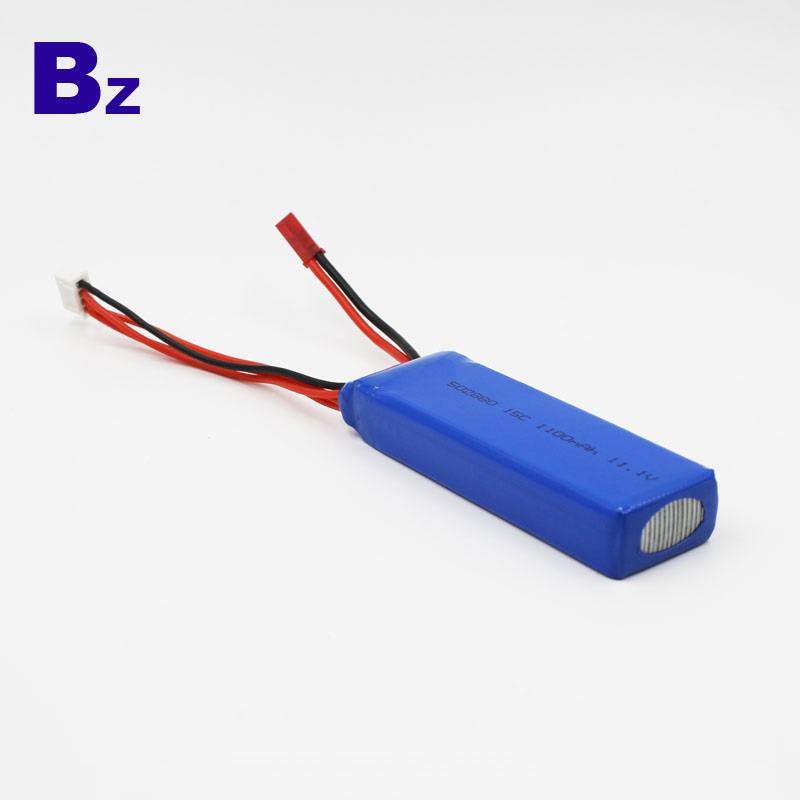

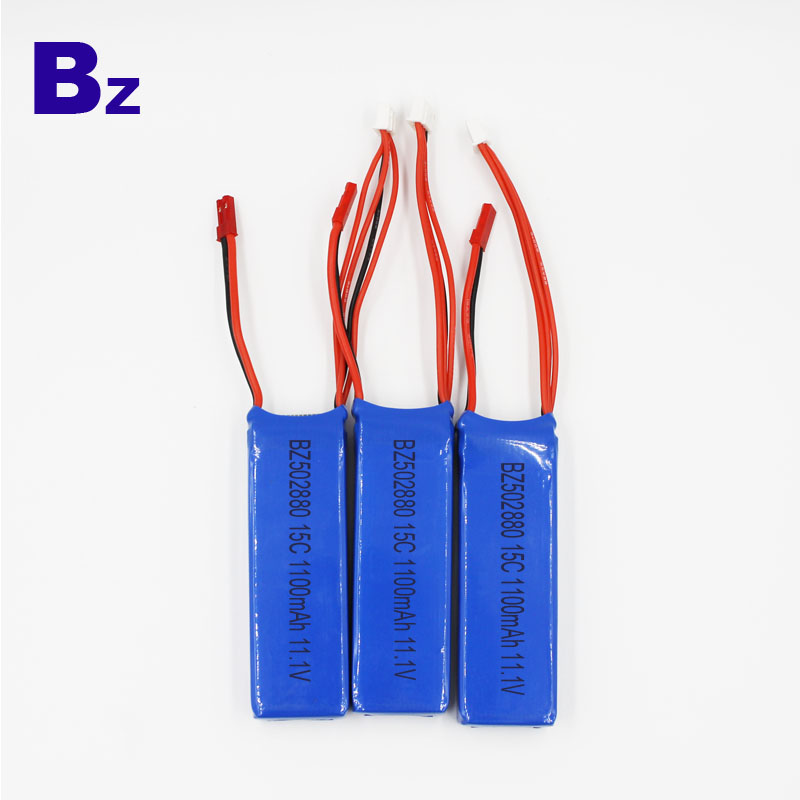

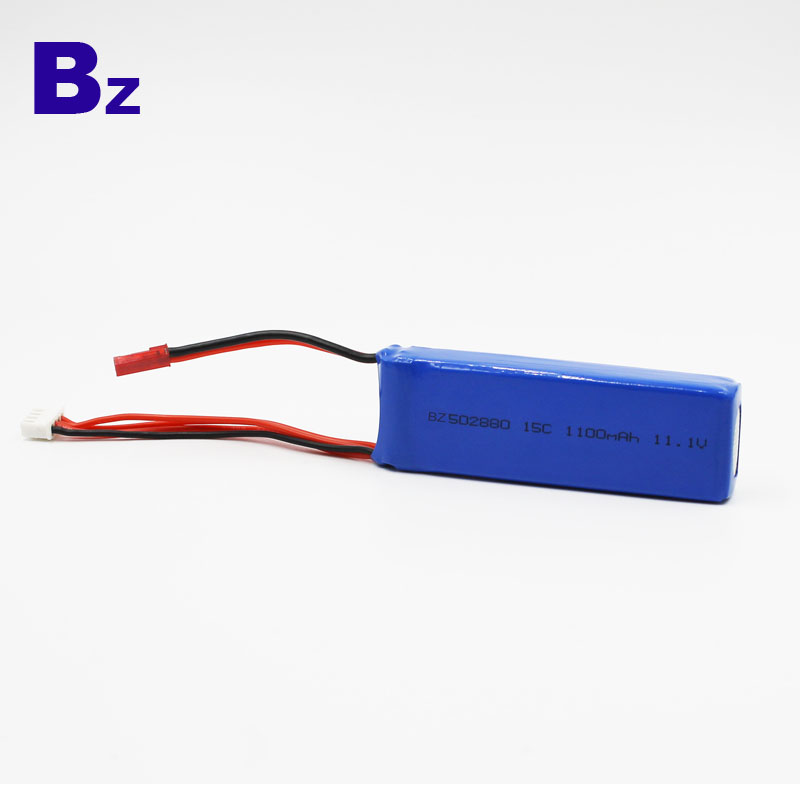

High Rate Battery - BZ 502880 - 1100mah - 15c - 11.1v - 3S - Lithium Ion Battery
| No. | Item | Criteriar | Remarks | |
| 1 |
Typical Capacity |
1100mAh 1050mAh |
Discharge:0.2CmA cut-off voltage:9.0V 0.2C | |
| 2 | Energy |
12.21Wh | ||
| 3 | Nominal Voltage | 11.1V | ||
| 4 | Open Circuit Voltage | 11.1~11.8V | ||
| 5 | Internal Impedance | ≤30mΩ |
AC 1KHz after standard charge | |
| 6 | Charge voltage | 12.6V | ||
| 7 | Standard charge current |
1100mA | 1.0C | |
| 8 | Max. charge current | 1050mA | 2.0C | |
| 9 | Max. discharge current | 16.5A( 15.0C) 33.0A (30.0C) |
Cont Discharge Current Burst Discharge Current |
|
| 10 | Discharge cut-off voltage | 9.0V | ||
| 11 | Operating Temperature |
0~+45℃ -10~+50℃ |
Charging Discharging |
|
